CMP5000

Last update: 15/03/2021
Version:CMP5000
Humidity Solution

Product Description

The CMP5000 is a relative humidity and temperature probe for Maturix® Concrete Humidity Monitoring. It is used together with the Gaia 220 transmitter and can be used for fresh and hardened concrete.

The CMP5000 probe is equipped with an Anti-Drift System, allowing prolonged exposure to high humidity levels without damaging the sensor.

Install the CMP5000, connect it to the Gaia 220 and the data is sent wirelessly to the cloud. The humidity and temperature readings are available in the web portal. The concrete drying process can be followed in real-time, and you can access the data from anywhere.

The Gaia 220 transmitter can be reused again and again. The CMP5000 probe can be either embedded into concrete or installed using a borehole method, making it reusable, especially if installed using the available liner.

Specifications

TitleSpecifications

Humidity Measurements

Range

0 to 100 %RH 1

Tolerance

±2 %RH

Resolution±0.1 %RH

Long-term Drift

<0.5%RH/year 2

Equilibrium TimeMin. 6 hours

Temperature Measurements

Range

-40 to 70 °C (-40 to 158 °F)

Tolerance

±0.3 °C (±0.54 °F)

Resolution±0.1 °C (±0.18 °F)



Use and Storage

Temperature

-30 to 50 °C (-22 to 122 °F)

Humidity

0 to 100 %RH

Ideal Storage Temperature

Indoor, 20 to 30 °C (68 to 86 °F)

Ideal Storage Humidity

20-65 %RH, preferable in sealed container with silica bag



Mechanical Specifications

Probe Dimensions (Ø x L)

14 x 118.2mm (0.55 x 4.65 in)

Cable Length2 meter (6.56 ft)

Weight

135 g (4.76 oz)

MaterialsProbe: Stainless steel and TPU plastic (grey)
Cable: PE (orange)
IP RatingIP64



Standards



Designed to comply with ASTM F2170

1 Long-term exposure to conditions outside normal humidity range (20-80% RH) may accelerate ageing. Learn more: maturix.com/drift.
2 Typical value for operation in normal RH/T operating range. Learn more: maturix.com/drift.

For operation at high humidity, please ensure connection to a battery powered Gaia 220 to maintain precision.
Technical Drawing of Gaia 220 and CMP5000

Documents

Compatible Transmitter

Accessories

Hole liners (plastic tube for measuring humidity in a borehole)

  • 33001-010: CMP5000 plastic liner sleeves (10pcs.)
  • 33001-100: CMP5000 plastic liner sleeves (100pcs.)

Dimensions of hole liner:

  • Outer diameter, tube: 17.3 mm (0.68 in)
  • Outer diameter, ribs: 20 mm (0.79 in)
  • Length: 99 mm (3.9 in)

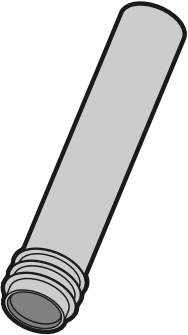

Hole liner for CMP5000
