Wireless Transmitter for Maturix Humidity and Temperature Monitoring

Concrete Humidity - Gaia 220

Humidity Measurements

CMP5000: 0 to 100 %RH

Reading range

CMP5000: ±2 %RH

Measurement accuracy

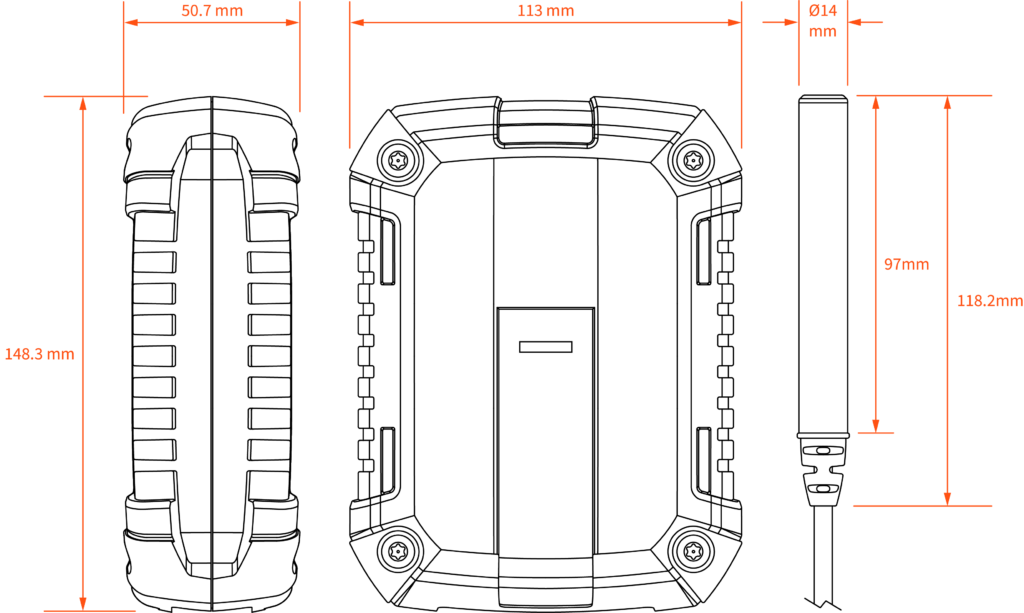

Technical Drawing of Gaia 220 and CMP5000

Gaia 220 and CMP5000

Technical Drawing of Gaia 220 and CMP5000

The Gaia 220 is a wireless transmitter for relative humidity and temperature measurements using the CMP5000 probe. It provides easy and accurate real-time data of the relative humidity and temperature data to know exactly how your concrete is drying. The data is transferred via Sigfox antennas or gateways from the world’s largest IoT network for an extended range than WiFi or Bluetooth.

Advantages

Wireless Concrete Humidity Monitoring with Wireless Sensors

Humidity Monitoring Made Simple

Follow the drying process and keep the overview of all monitorings. Alarms and automatic reports make Maturix a strong documentation tool.

Flexible Solution

Use the Gaia 220 together with the CMP5000 probe and either embedded the probe into concrete or install it using the borehole method and make it reusable.

Accurate Long-Term Data

The integrated Anti-Drift-System enables accurate long-term measurements even after being exposed to high levels of humidity with no drift of the humidity sensor.

Hardware

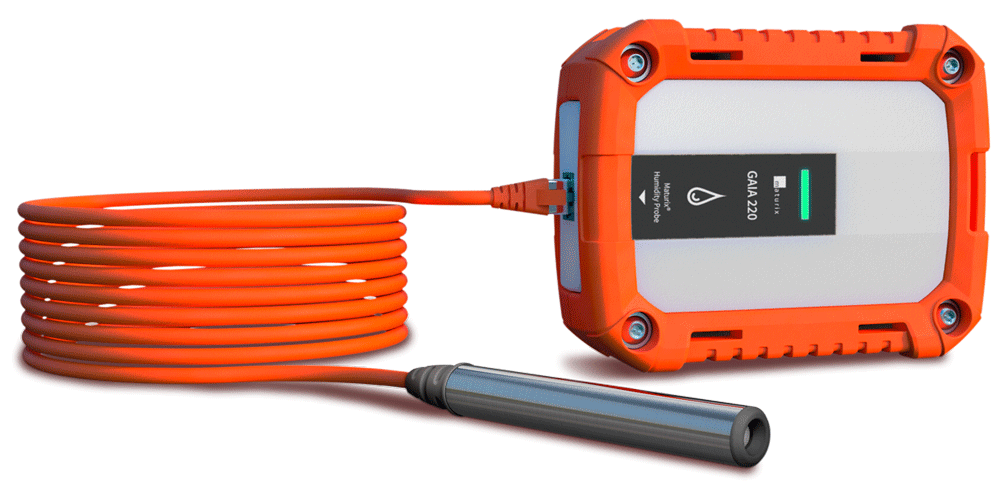

Gaia 220 and CMP5000

Plug & play solution

Connect the wireless transmitter with the CMP5000 humidity probe. When the probe is connected, the transmitter starts measuring and sending data to the cloud.

Flexible and versatile

The CMP5000 humidity probe with its two meter cable length can be either embedded into concrete or installed using the borehole method, making it reusable.

Access from anywhere with wireless data communication

The data is sent wirelessly from the transmitter to the cloud through antennas or gateways and can be accessed in the web portal from anywhere.

Check status easily

The LED indicator shows the transmission status and its battery lifetime for easy interaction.

Exact measurements with CMP5000 probe

The probe for relative humidity and temperature measures the data accurately - also after being exposed to high humidity levels with the integrated Anti-Drift-System.

Rugged design with replaceable batteries

The Gaia 220 is weather-resistant with multiple mounting slots for easy installation. The batteries can be exchanged easily for extended use.

Hardware

Gaia 220 and CMP5000

Gaia 220

Plug & play solution

Connect the wireless transmitter with the CMP5000 humidity probe. When the probe is connected, the transmitter starts measuring and sending data to the cloud.

Flexible and versatile

The CMP5000 humidity probe with its two meter cable length can be either embedded into concrete or installed using the borehole method, making it reusable.

Acess from anywhere with wireless data communication

The data is sent wirelessly from the transmitter to the cloud through antennas or gateways and can be accessed in the web portal from anywhere.

Check status easily

The LED indicator shows the transmission status and its battery lifetime for easy interaction.

Exact measurements with CMP5000 probe

The probe for relative humidity and temperature measures the data accurately - also after being exposed to high humidity levels with the integrated Anti-Drift-System.

Rugged design with replaceable batteries

The Gaia 220 is weather-resistant with multiple mounting slots for easy installation. The batteries can be exchanged easily for extended use.

How It Works?

Easy Plug & Play

Humidity Probe Install

1. Install CMP5000

The probe can be either embedded into concrete or installed using a borehole method, making it reusable, especially when installed with liners.

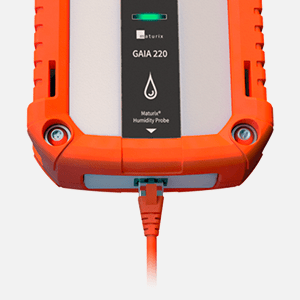

Gaia 220 Connect

2. Connect Gaia 220

Connect the probe with the Gaia 220 and the device starts measuring the relative humidity and temperature indicating with the blinking LED.

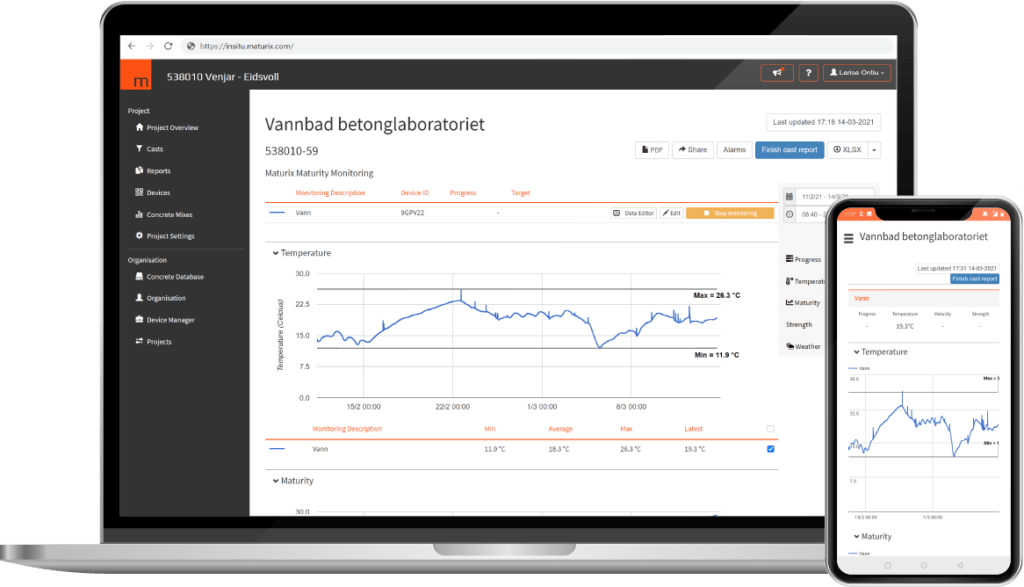

Maturix Insitu Software

3. Get Results

Follow the data in the software from smartphone, computer or tablet with internet. Set up alarms and keep updated on the drying process.

Applications

When to Monitor Relative Humidity in Concrete?

Concrete Humidity Monitoring with sensors - Gaia 220

Why Maturix?

Accurate Long-Term Humidity Monitoring Inside Concrete

Follow Drying Process 24/7

The solution provides real-time insights into the concrete drying process. Adjust your project based on data and cut down redundant drying time.

Cut Redundant Waiting Time

Reduce waiting time and ensure great product quality through continuous monitoring and aligning workflows with the concrete performance.

Reduce On-Site Visits

Access the data from anywhere and reduce the visits on site as the humidity is monitored continuously and the progress is followed

Additional Information

Edit
TitleSpecifications

Humidity Measurements

Range

CMP5000: 0 to 100 %RH 1

Tolerance

CMP5000: ±2 %RH

Resolution±0.1 %RH

Temperature Measurements

Range

CMP5000: -40 to 70 °C (-40 to 158 °F)

Tolerance

CMP5000: ±0.3 °C (±0.54 °F)

Resolution±0.1 °C (±0.18 °F)



Data Transmissions

Transmission Interval

Cable connected: Once every hour 2
No cable connected: Once every 6 hours
Downlink: Once every week

Network

Sigfox

Sigfox

RC1, RC2

Wireless Signal Range (using Sigfox Gateway)

Up to 3 km (1.86 mi) 3



Use and Storage

Temperature

-30 to 50 °C (-22 to 122 °F)

Humidity

0 to 100 %RH

Ideal Storage Conditions

Indoor, 20 to 30 °C (68 to 86 °F)



Mechanical Specifications

Dimensions (L x W x H)

148.3 x 113 x 50.7 mm (5.84 x 4.45 x 2 in)

Weight

560 g (19.75 oz)

MaterialsBody: ASA plastic (white)
Protective edge: TPU elastomer (orange)
Battery Type4 x AA, 1.5 V alkaline/lithium or 1.2V rechargable 4
Socket TypeMiniature, type K, female
LEDMulti color LED
IP RatingIP64



Certifications



CE, Radio Equipment Directive (RED), RoHS



Compatible Software


Maturix® In-situ 5
Sensohive App
API

Download Data sheet

Edit

What is the Gaia 220?​

The Gaia 220 is an electronic device that records relative humidity and temperature and wirelessly sends it to the cloud. The humidity and temperature is measured using the CMP5000 probe and the readings can be viewed online in one of our web portals.

How is the data transferred to the cloud?

The data is sent using Sigfox. Sigfox is a wireless network designed to connect smart devices to the cloud. It benefits from longer range than Bluetooth and WiFi, and you can set up a Sigfox Gateway at your job site to create coverage – even at remote locations.

Do I need to be at the job site to access the data?

No – and that is the smart thing! You can access the temperature readings from your computer or smartphone at any time, anywhere. Once you have installed the equipment, you can follow the temperature and strength development online in real-time.

Is the Gaia 220 waterproof?

Yes, the Gaia 220 is dust- and waterproof.

What is the Maturix Humidity System?

The Maturix Humidity System consist of the Gaia 220 transmitter and the CMP5000 humidity probe.

What is the Anti-Drift System technology?

The CMP5000 has an Anti-Drift System that actively protects the humidity sensor in extreme conditions. Because of this, the sensor handles high humidity conditions drastically better than any of its comparable rivals.
