Humidity Monitoring

Real-Time Monitoring of Relative Humidity and Temperature in Concrete

Concrete Humidity - Gaia 220

The relative humidity inside the concrete is the deciding factor when the coating or flooring can be started. Monitoring the relative humidity and temperature in real-time with wireless devices makes it easy to follow the drying status from anywhere, with no need to revisit the site.

Concrete Humidity - Gaia 220

Advantages

Follow the Concrete Drying Process Live

Remote Data Collection

The monitoring data is accessible through the web platform from any device with internet from anywhere.

Better Scheduling

Adjust the project timeline based on real-time data and improve efficiency while ensuring safety on-site.

Automatic Documentation

All data is stored in the cloud and can be shared and exported easily for a user-friendly reporting.

Reduce Site Visits

The data is monitored continuously and no extra visits on site are needed to follow the drying process.

How Is the Data Transmitted?

Follow the Real-Time Drying Process From Anywhere

To monitor relative humidity and temperature with Maturix, install the CMP 5000 Humidity probe at the desired position and connect it with the wireless Gaia 220.

The measurements are sent wirelessly to the cloud through nearby Sigfox antennas or gateways.

The humidity and temperature readings are available in the web portal and the concrete drying process can be followed in real-time from anywhere.

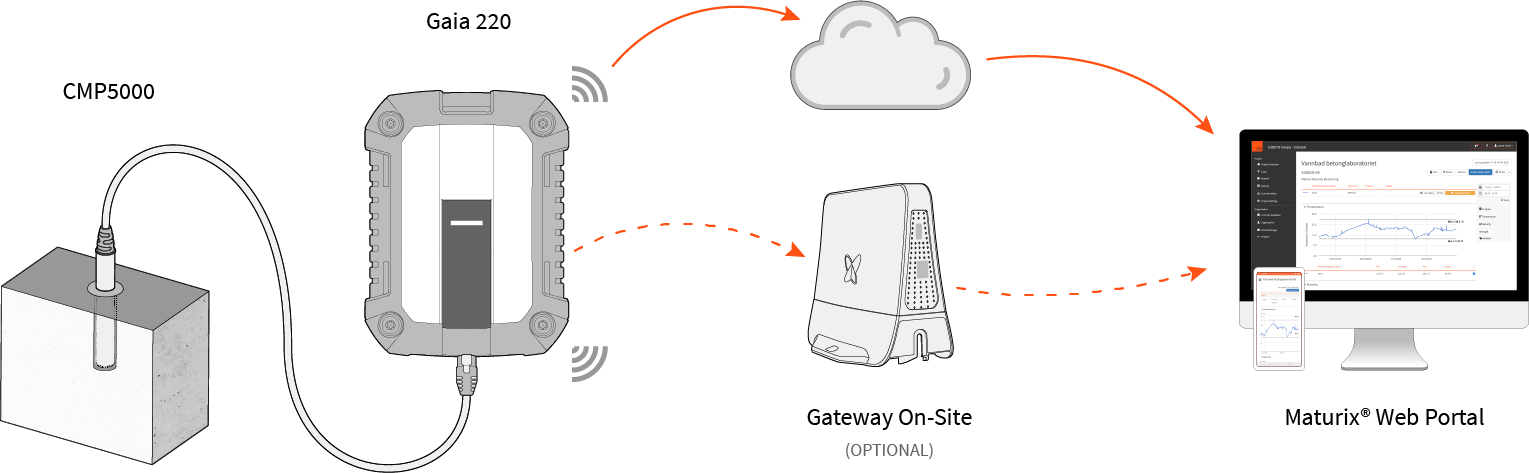

System Overview Humidity and Temperature Monitoring

How It Works?

Easy Plug & Play

Humidity Probe Install

1. Install Humidity Probe

The probe can be either embedded into concrete or installed using a borehole method, making it reusable, especially when installed with liners.

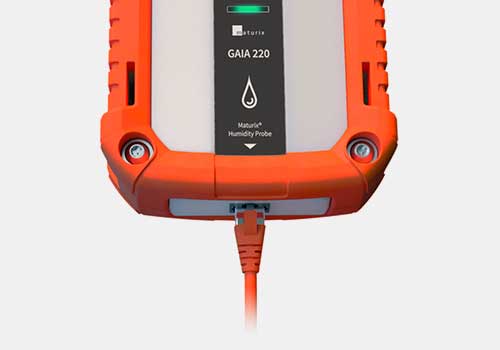

Gaia 220 Plug Card

2. Connect Gaia 220

Connect the probe with the Gaia 220 and the device starts measuring the relative humidity and temperature indicating with the blinking LED.

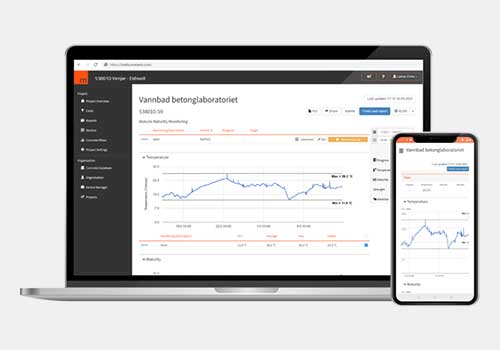

Insitu Results

3. Get Results

Follow the data in the software from smartphone, computer or tablet with internet. Set up alarms and keep updated on the drying process.

Hardware

Rugged Concrete Sensors

Use the Gaia 220 together with the CMP5000 probe to monitor relative humidity and temperature inside a structure.

The Gaia 220 transmitter is designed to withstand rough environments and the humidity probe convinces with accurate long-term reading thanks to the integrated Anti-Drift-System. The transmitter can be reused again and again and the CMP5000 probe can be either embedded or installed using the borehole method.

Hardware

Rugged Concrete Sensors

Use the Gaia 220 together with the CMP5000 probe to monitor relative humidity and temperature inside a structure.

The Gaia 220 transmitter is designed to withstand rough environments and the humidity probe convinces with accurate long-term reading thanks to the integrated Anti-Drift-System. The transmitter can be reused again and again and the CMP5000 probe can be either embedded or installed using the borehole method.

Software

Gain Insights Into Drying Process

Maturix Insitu Software

Just log in to the web platform and follow the concrete curing data from your smartphone or computer. The clear software structure makes it easy to keep the overview of the relative humidity and temperature status in the monitoring positions. Set customizable alarms to always to be updated in real-time when the required target has been reached to adjust the project schedule based on real-time data. Automatic documentation of the data makes it a great digitalization tool.

Maturix Insitu Software

Applications

When to Monitor Relative Humidity in Concrete?

Let's find out if Maturix can help you to boost efficiency on-site!
