Concrete Strength and Maturity Monitoring

Temperature and Strength Monitoring with Thermocouples

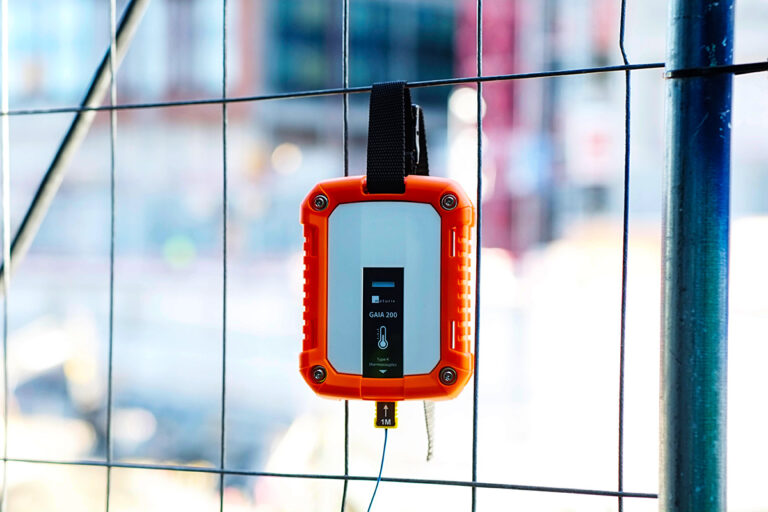

Measuring Strength and Maturity with Gaia 200

Follow the compression strength and maturity development based on the Concrete Maturity Method with temperature history data. You gain real-time insights into the in-place concrete curing process to align your schedule, cut down redundant waiting time, and remove the formwork at the optimal time while reducing the number of test specimen for less work and greater results.

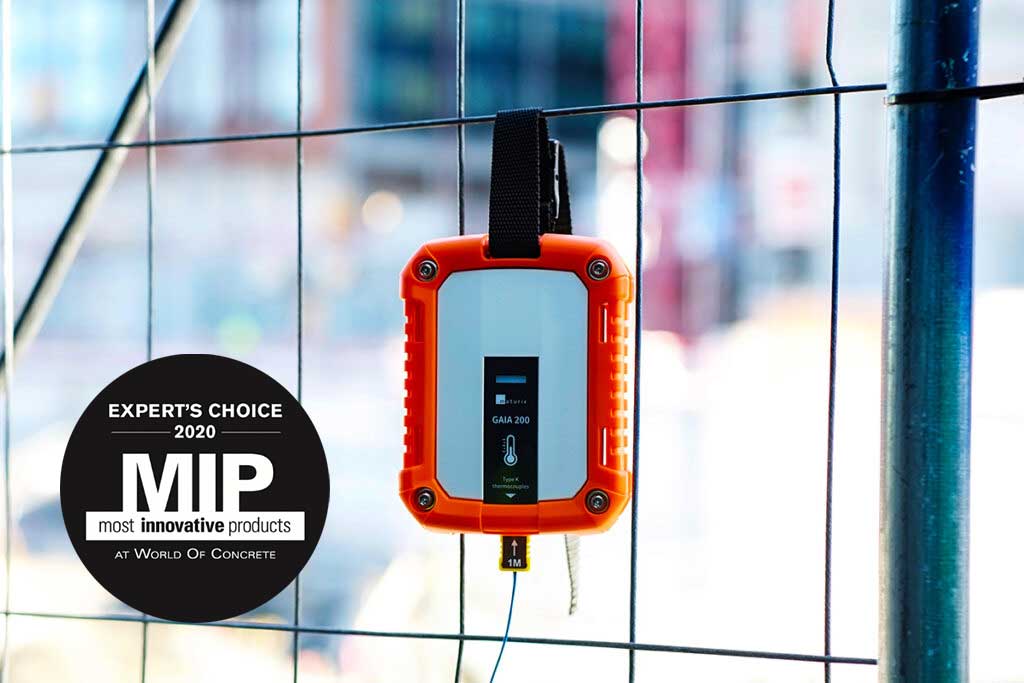

Measuring Strength and Maturity with Gaia 200

Advantages

Real-Time Insight Into the Concrete Curing Process From Anywhere

Reduce Test Specimen

Monitor directly inside the concrete structure and follow the actual concrete curing process with sensors.

Low Cost per Monitoring

Reusable devices with thermocouples make it the most cost-efficient solution for real-time monitoring.

Reduce Visits On-Site

Access the data through the web portal from any device with internet - with no need to be close to the sensor.

Access From Anywhere

Data is transmitted using Sigfox, a global IoT network with a much longer range than WiFi and Bluetooth.

How Is the Data Transmitted?

Wireless Transmission With Access From Anywhere

Install the thermocouple at the rebar, connect it to a Maturix transmitter and it will automatically start sending the temperature data continuously.

The measurements are sent with the world’s largest IoT network and the data is sent wirelessly to the cloud through antennas or an optional gateway.

The temperature, maturity, and strength data are then accessible online from smartphones, tablets or computers from anywhere.

How It Works?

A Very Easy Process

Installation Rebar

1. Install Thermocouple

Secure the thermocouple with cable ties at the desired position where you want to follow the curing process.

Gaia 200 & Type K Thermocouple

2. Connect Transmitter

Plug the thermocouple into the wireless transmitter to start the continuous data transmission.

Concrete Curing Monitoring

3. Pour Concrete

Cast the concrete. Start the monitoring in the software to follow the curing process in real-time.

Maturix Precast Software

4. Get Results

Access the data in the web portal from anywhere and stay updated with customisable alarms.

Hardware

Rugged Concrete Sensors

Maturix temperature & strength monitoring combines a rugged wireless transmitter with an industry-standard type K thermocouple.
The transmitters are designed to withstand rough environments such as on construction sites and with multiple mounting options, they can be installed flexibly. The reusable transmitters are connected to an industry-standard type K thermocouple leading to the lowest cost per monitoring for real-time concrete monitoring.

Hardware

Rugged Concrete Sensors

Maturix temperature & strength monitoring combines a rugged wireless transmitter with an industry-standard type K thermocouple.
The transmitters are designed to withstand rough environments such as on construction sites and with multiple mounting options, they can be installed flexibly. The reusable transmitters are connected to an industry-standard type K thermocouple leading to the lowest cost per monitoring for real-time concrete monitoring.

Software

Effortless Concrete Monitoring

Just log in to the web platform and follow the concrete curing data from your smartphone or computer. The clear software structure makes it easy to keep the overview of temperature, maturity and strength development and you get all the insights you need. Set customisable alarms always to be updated in real-time when the required strength has been reached or the internal temperature difference exceeds a certain value. Automatic documentation of the data makes it a great digitalisation tool.

Applications

When to Monitor Concrete Strength and Maturity?

Let's find out if Maturix can help you to boost efficiency on-site!
