Temperature Monitoring With Maturix

Why is it important to monitor concrete temperature?

Concrete temperature has a direct effect on two very important aspects:

Strength development process

Concrete temperature has a huge impact on the concrete’s strength development process. When cement, water, aggregate, and additives are mixed together, a significant heat increase occurs. This is due to the exothermic process in the reaction between cement and water (called cement hydration). As the temperature increases, the processing speed does also. The internal temperature development will accelerate until the availability of free cement particles becomes a limitation, at that point it will start decreasing again. The internal temperature of the concrete will depend on the size and shape of the cast, the type of concrete, mix composition, curing techniques and the ambient conditions at the jobsite or precast factory.

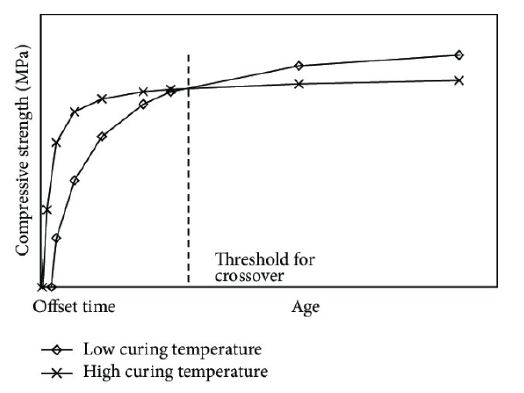

It is important to be aware of the crossover effect. This effect shows that if the concrete cures at high temperatures during the early stages, the final strength may be lower than expected when compared with curing it at lower temperatures. For example, you can see in the figure below that the strength of two concrete samples cured under low temperatures and high temperatures have slightly different strength development curves.

Crossover Effect

In the concrete cured at high temperatures, the strength development goes faster at the beginning than the low curing one. However, this fast strength development does not last in the long term. In contrast, if the same concrete is cured at low temperatures, the strength initially develops slower but the final strength ends up being higher than the high temperature curing concrete.

Risk of cracks and imperfections

Temperature also plays an important role regarding the risk of cracks and defects. During the cement hydration process, the reaction emits heat along the structure. However, the temperature is, in most cases, not the same in different parts of the structure. This is because, the heat dissipates more easily from the concrete’s surface, due to its location and the cooling effect of the wind, than in the concrete’s core. You can see this in the illustration below:

Heat distribution

In the illustration, you can see that the temperature is higher at the core and then it decreases in the sides. This means that while the surface is contracting and hardening, due to the lower temperatures, the core is still warm and expanded. If the temperatures become too different, the internal tensions inside the concrete will increase and cause cracks. These cracks vary in size and severity, some will be simply aesthetic while others may present a structural problem, ending as a costly affair.

So we have seen that temperature plays a key role in the concrete’s strength development and quality. If this is not managed properly, you may end up with a lower than expected 28-day strength, a concrete with cracks and imperfections or a concrete that seems to take forever to cure. It is hard to solve the issues created by temperature if you are not measuring it in any way.

Benefits of concrete temperature measurement​a

Temperature plays a very important role in concrete. While monitoring temperature is a requirement in mass pours, these are not the only ones that can benefit from doing it. Some of the potential benefits of monitoring the internal temperature of concrete are:

How can you monitor temperature?

The customers that benefit the most from using the system are general contractors. They are many gains to make and these can be classified into two broad categories:

Temperature monitoring solutions​

In broad terms, there are two main types of solutions in the market. The first are traditional data loggers. These type of devices normally consist of:

The second type are concrete sensors. These vary in shape and functionality but normally consist of:

Installation

The concrete sensors can be broadly classified in:

WiredSmall
Wired sensor solutions

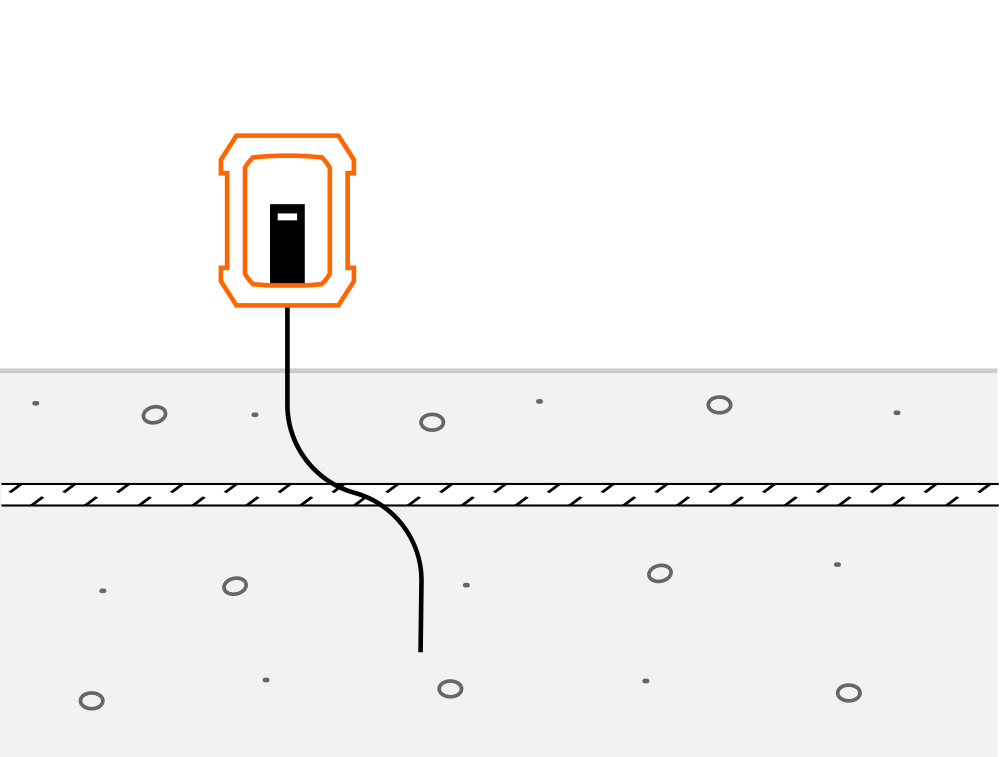

Wired sensor solutions, either using thermocouple sensors or custom-made sensors with internal memory, are attached to the rebar and connected to a data logger or transmitter. The sensors are then embedded into the concrete while the data logger or transmitter stays outside the concrete.

NoWiresSmall
Wire-free sensor solutions

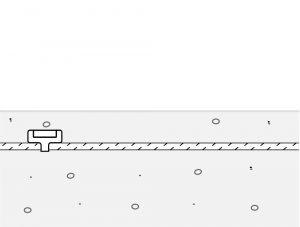

Wire-free, these sensors combine the sensor, internal storage, and transmitting electronics in one single device. These are usually attached to the rebar and are fully cast into the concrete.

Reusability

Reusable components

When using wired sensors, the data logger or transmitter stays outside the concrete which means that these can then be reused again and again.

Non-reusable components

When using wire-free sensors, all the components, which are contained in a single device, are embedded in the concrete. Therefore, you lose one device in every monitoring.

The major characteristic setting apart the different solutions is the way that the data is collected. This is important because some products will require you to be close to the sensor to collect the data while others can send it directly to the cloud. This is explained below:

Data collection

DataLaptop

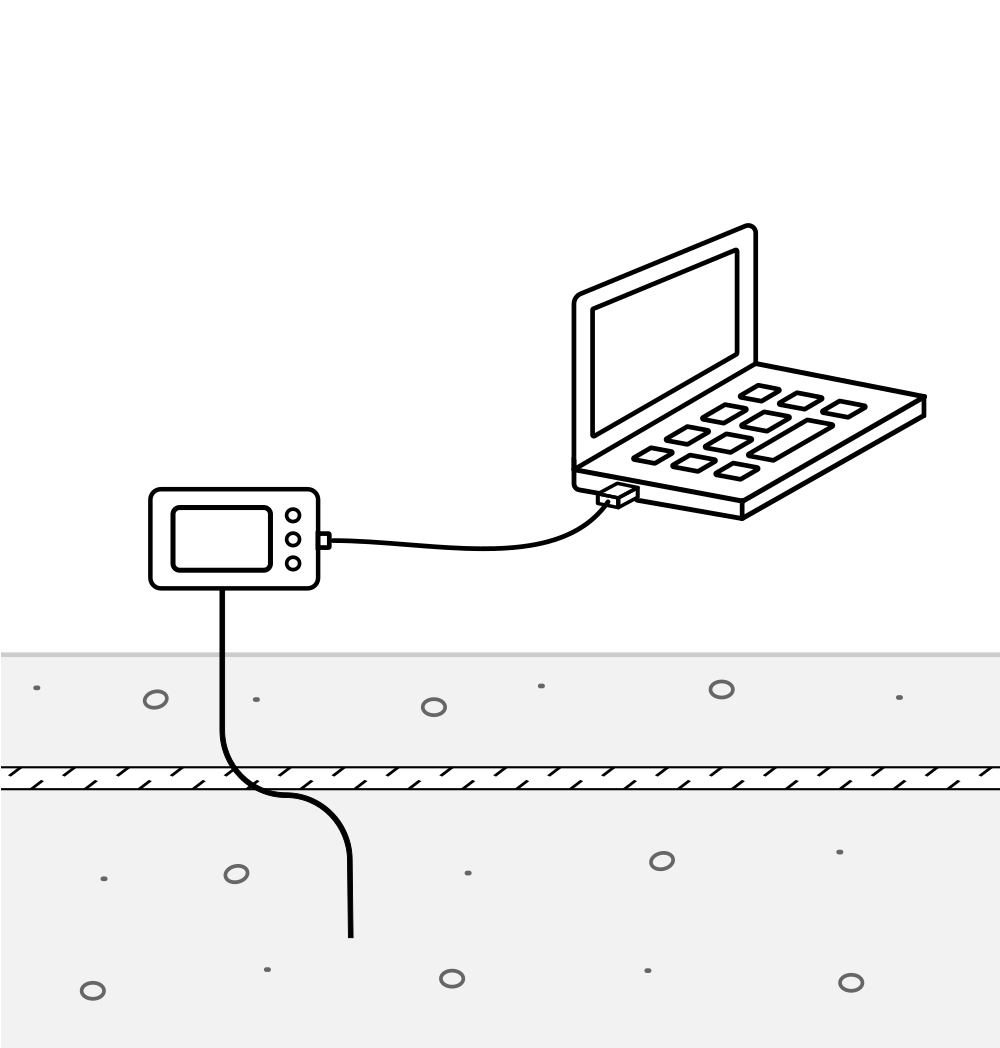

When using data loggers, you or someone on the team needs to personally get to every sensor and obtain the data manually.

Bluetooth2

When using wire-free sensors, to get the data you need to be on-site to connect to each sensor via Bluetooth (distance max. 8 meters).

TransCloud

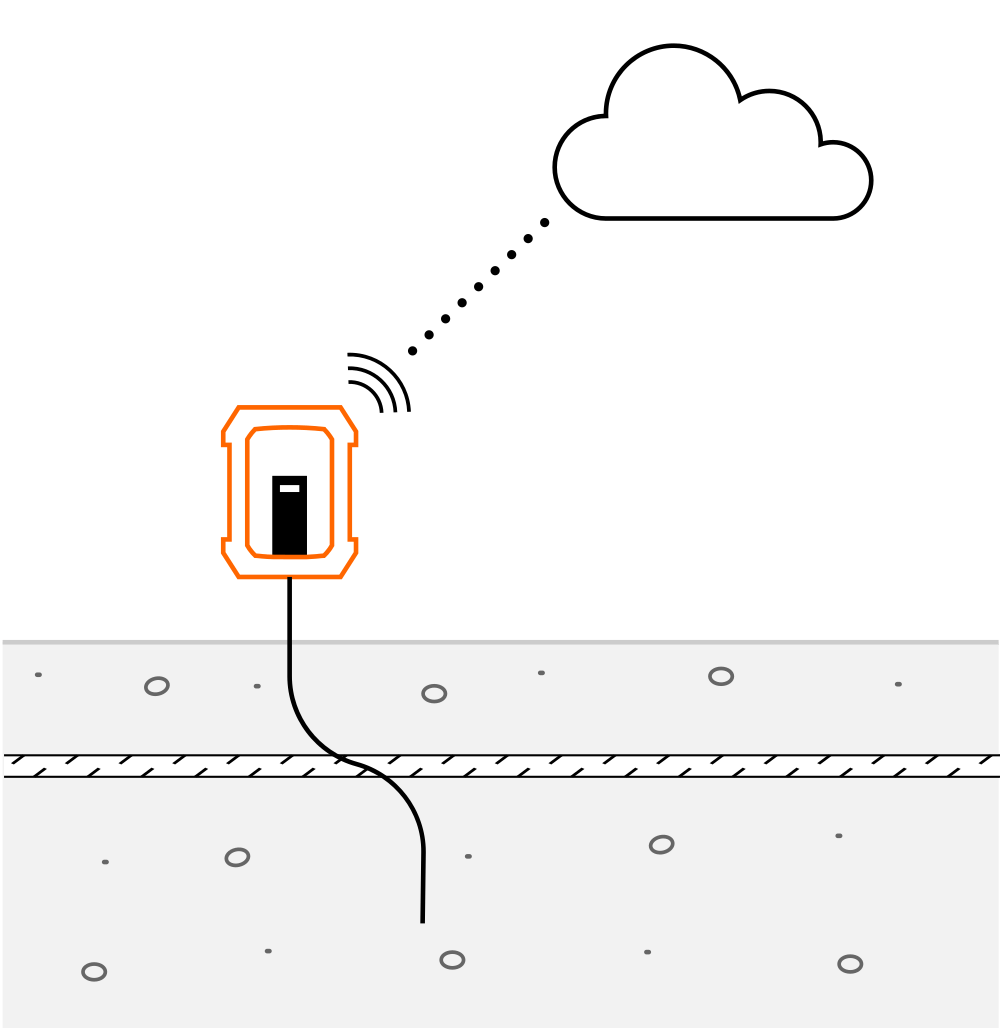

When using wireless transmitters, the data is available from anywhere, as the measurements are sent to the cloud continuously – with no need to be on-site to collect measurements.

How to choose the best solution for you?​

The range of options within temperature monitoring solutions have been expanding rapidly in the past few years. This makes it harder to get a clear overview of what is important and which solution will suit your needs better. In general, we advice to keep  these basic recommendations in mind:

After you find a solution that satisfies the recommendations above, you may still have plenty of available choices. You can narrow these down by considering:

Having a clear answer to these questions will make it a lot easier for you to make the right choice of system. This way you will avoid choosing a system that doesn’t fit your requirements or which might be too big and expensive.

Why choose Maturix?

Maturix is a combined sensor and software solution enabling easy, affordable and efficient monitoring of concrete curing. A cheap and thin temperature probe (thermocouple) is embedded in the concrete. The thermocouple is connected to a transmitter placed outside the concrete. The transmitter sends data directly to the cloud using long range technology called Sigfox. The data is stored in the cloud accessible by all devices with internet access. Moreover, it is possible to use the already available temperature readings to calculate concrete maturity and strength.

Having a wireless and remote sensor solution is an efficient solution to keep track of:

Having this information available in real-time enables you to:

How many temperature sensors do I need?

The number of sensors required depends on type of project, structure characteristics and the requirements you may have. If it is the first time that you are using sensors, the best idea is to contact the solution provider and send them the structure plans, concreting schedule and other important requirements and they can recommend a certain amount. That said, when you get more experience working with sensors, it will become easier to estimate the amount you need.

Where should you measure concrete temperature? ​

The best recommendation is to measure the temperature in the spots where you expect the most extreme temperatures, both cold and warm:

Measuring lowest temperature in the concrete

The spots with the lowest temperature development will have a slower hydration and thereby a slower strength development. This means that these spots are at increased risk of early frost and even if these will reach more or less equal strength in the end (studies do show small variations ), it would take a longer time. Therefore, it is a good idea to monitor the temperature and strength development at these spots. It is important to remember these spots both in your planning (simulation) and in your control (sensor readings), as you need to make sure that they reach the strength before removing the formwork.

You will often be able to find these spots in:

Measuring highest temperature in the concrete​

The largest temperature stress occurs when you have a cold spot (described above) and a warm core temperature. You normally don’t want more than 10-20C differences in a cross section of your concrete. If you exceed these,  the risk of thermal cracks will increase. The cracks also are a result of much shorter exposure of sudden temperature variations, where stresses suddenly can occur.

The temperature stresses are often highest in connection with:

In addition to monitoring to reduce risk of cracks, you might also take the following aspects into consideration, as you could benefit from additional monitoring to cover aspects like:
