Introduction to the Maturix Gateway Kit

Last update: 15/08/2024
You are here:

Introduction

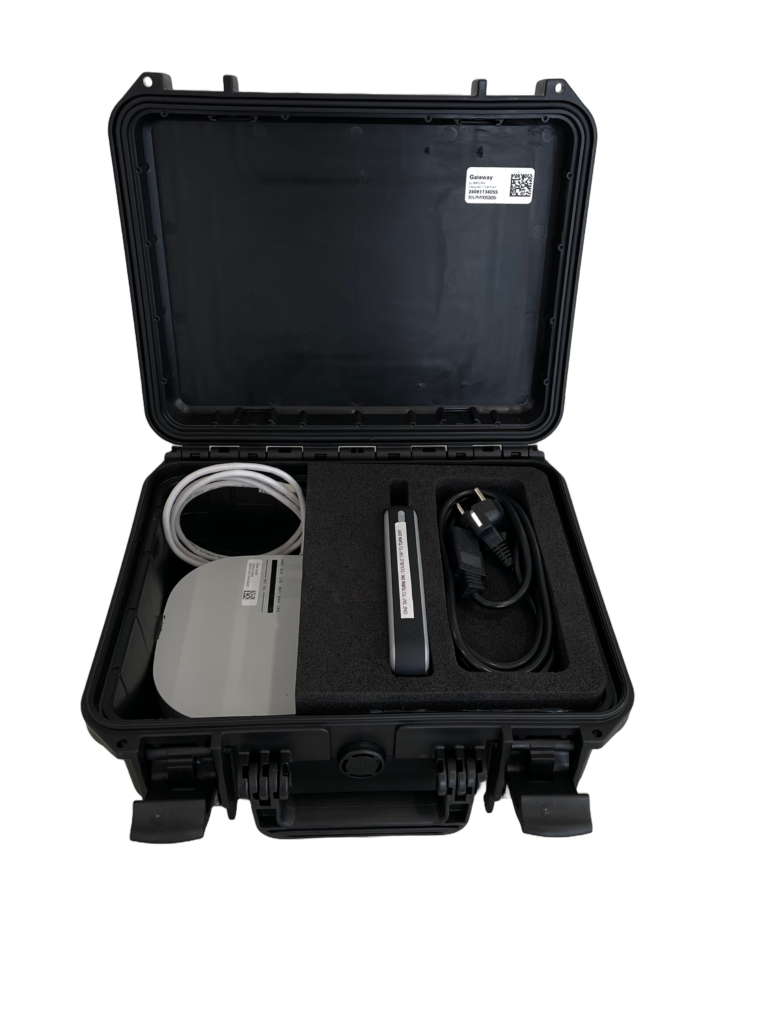

The Maturix Gateway Kit includes everything you need for full connectivity, featuring:

  • Durable, waterproof suitcase
  • NAP7 Sigfox gateway
  • Integrated SIM card with cellular connectivity
  • 19.200 mAh pass-through battery backup

The Sigfox NAP7 can be used to ensure network, where coverage might be lacking or insufficient.

The gateway can be installed both indoor and outdoor.

To use the Sigfox Gateway, you will need:

  • Internet connection, either by:
    • Cellular – 4G (already integrated)
    • Ethernet
    • WiFi
  • 220V/110V AC power outlet

Using the gateway is not mandatory if coverage is good, but it can help create the optimal conditions for data transmissions if the network coverage is insufficient.

Technical Specifications

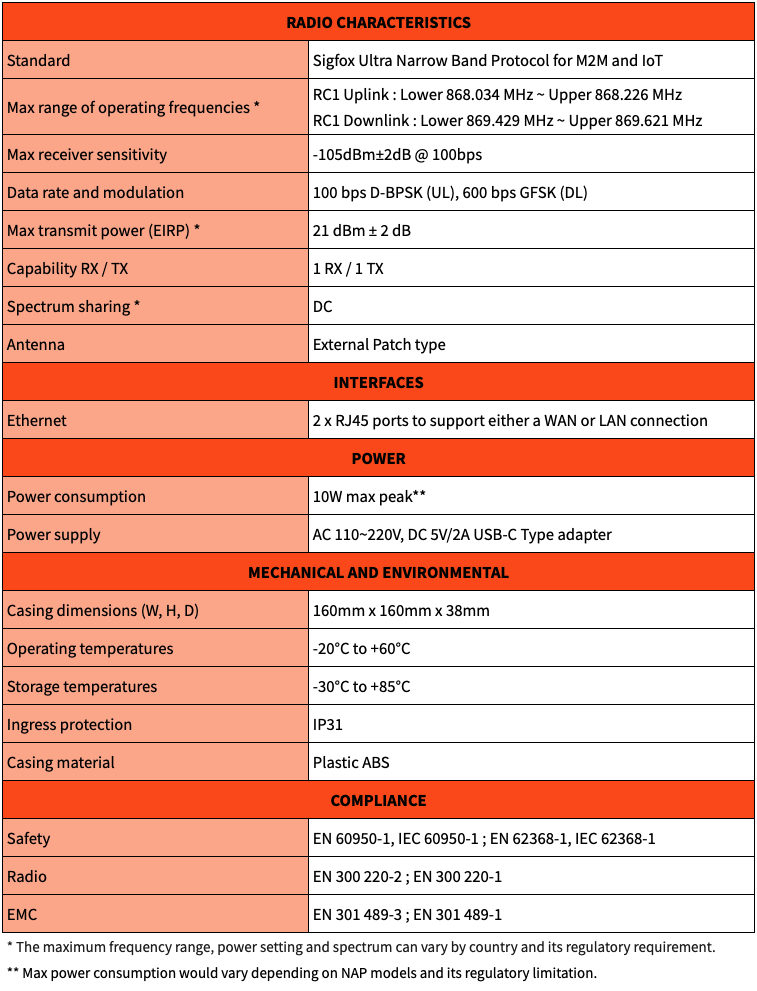

Technical specifications for the NAP7 Sigfox gateway

Resources
